HENN HC.fluid M – The proven VDA connector

Our modular connector impresses with its versatility and optimized insertion forces for quick, secure, and easy installation – the flexible solution for a wide variety of installation situations. Thanks to its special design, the coupling head does not come into contact with the medium – the key to maximum flexibility.

Advantages

  • Optimal flexibility thanks to a highly adaptable modular system
    • Various material options (on request: 80 % lower CO2 emissions thanks to the optional material HENNamid A.PIR)
    • Need-based hose connection and elbow design
    • Many functional enhancements, such as sensors, reducers, check valves and additional outlets, are possible
  • Minimal insertion force
  • Anti-twist protection
  • Flexible orientation at any angle, with a standard head rotation by 45 °
  • Highly effective seal
  • 100% traceability
  • Compact design
  • Fully compliant with VDA standard
HC.fluid M product folder

Technical Data

Material

Coupling body
PA 66 GF | PP GF
Coupling head
PA 6 GF
Sealing element
LSR
Spring clip
Stainless steel (1.4310)

Temperature

LSR
-40°–135° (150°, 22 h)

Pressure

Absolute
0,01 – 6,0 bar

Nominal Size (VDA)

icon diameter
6 mm
8 mm
12 mm
14 mm
16 mm
18 mm
20 mm
26 mm
32 mm

VDA Versions

90°

45°

HOSE CONNECTION VERSIONS

HOSE CONNECTION

PIPE CONNECTION (WITH Firtree

RIBBED HOSE CONNECTION

MODULARITY – DESIGN EXAMPLES

We specialize in creating individual solutions. Our examples showcase the possibilities we can design and build for you. Each variant is developed on request – tailored precisely to your needs. Together with our expert team, we will find the perfect solution for you.

2 OUTLETS

T-PIECE

T-PIECE WITH SENSOR

OPTIMIZED FOR SPACE

OPTIMIZED FOR FLOW

Quality and versatility.

henn quality

Our new product ranges impress with their optimal modularity and quality. With a broad range of different nominal diameters and versions, we’re able to meet just about any customer requirements.

compatibility

Product compatibility.

One for all.

Our innovative modular system enables limitless combinations. The material and design can be precisely tailored to your needs.

Modularity for full flexibility.

Head orientation.

The connector can be aligned in eight different orientations at 45 degrees in each case. This comes along with major advantages with regard to assembly, which is also easy in tight conditions.

modularity head orientation
modularity add ons

Modularity for full flexibility.

Intelligent integration

Our products offer more: The modular system design allows for the easy integration of sensors and additional modules. This enables standard components to be quickly and cost-effectively combined with custom add-ons – for tailored solutions to meet specific requirements.

Optimized for flow

Up to 60 percent
less pressure loss in comparison to other VDA connectors.

flow base image
flow animation arrow
flow overlay
e auto ansicht durchsicht
e auto ansicht durchsicht batteriekuehlung
e auto ansicht durchsicht kuehleranschluss

Perfect solutions for e-mobility.

Cooling plays a crucial role in electric vehicles. HENN offers perfect solutions here:

Our global team of experts develops couplings and connectors together with you to ensure reliable heat management. Our innovative modular system and our customer orientation, coupled with our expertise, are our unique added value.

Find out more

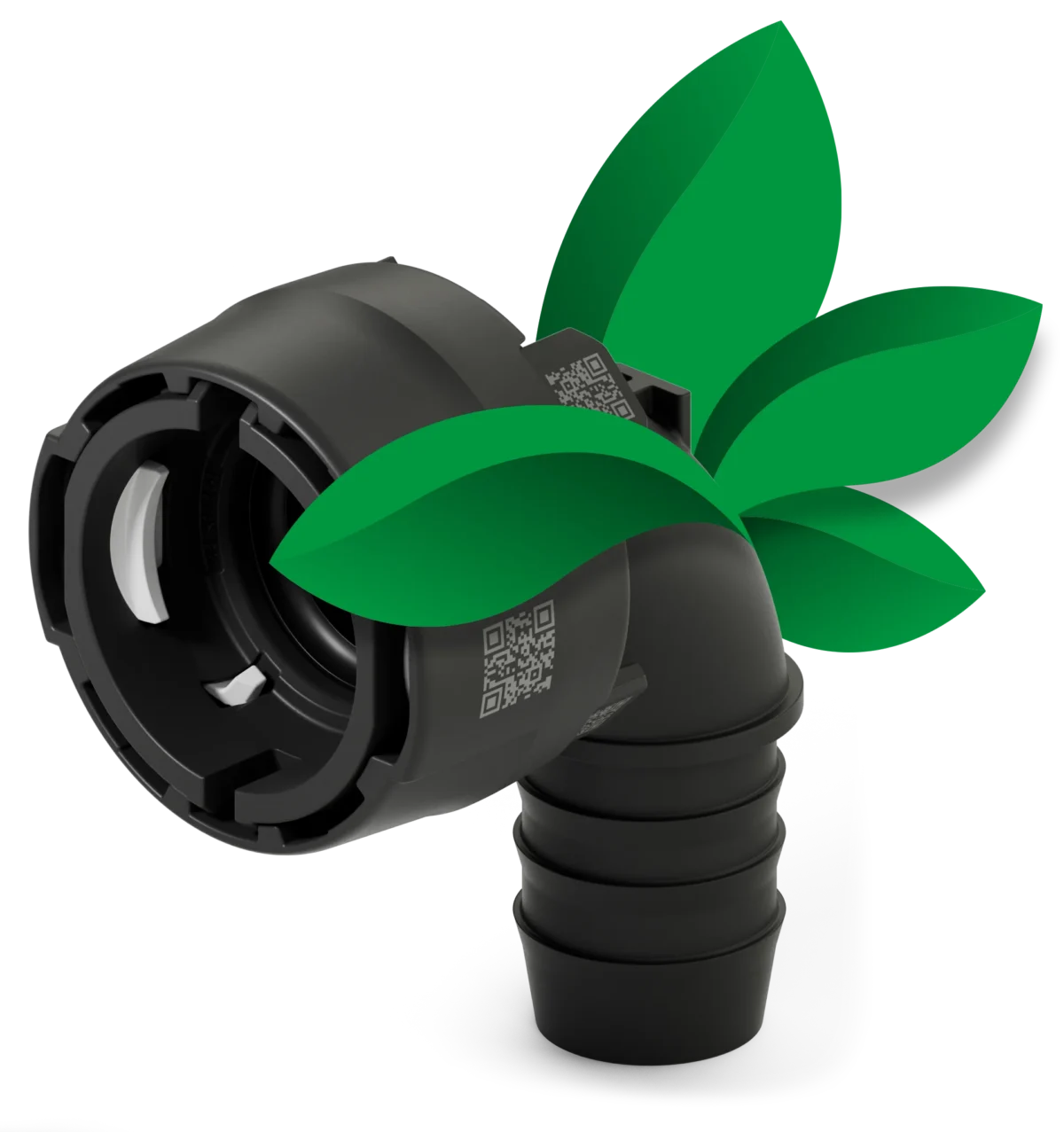

Revolutionary Material

Reduces Carbon Footprint by 80 %

We manufacture the connectors from recycled industrial waste upon customer request, taking a big step towards a more sustainable future. The material offers the same performance as conventional materials, but with a fraction of the ecological impact.
