HENN HC.fluid F - The next-generation connector
Our premium connector combines modular design with maximum efficiency and safety: The innovative construction with no spring clips enables extremely low insertion forces and simplifies processing. An integrated locking detection ensures correct connections and supports automated final inspection. All connectors and stems are flow-optimized – for maximum system efficiency and lasting added value.
Lock indication:
The DMC code will not be readable if assembly was carried out incorrectly.
Advantages
- Optimal flexibility thanks to a highly adaptable modular system
- Functional enhancements, such as sensors, reducers, check valves and additional outlets, are possible
- Various material options (on request: 80 % lower CO2 emissions thanks to the optional material HENNamid)
- Very low insertion force
- Tool-free one-hand assembly and disassembly
- Anti-twist protection in eight positions (VDA)
- Flow-optimized stems in six angles
- Strem for hoses and pipes
- Locking detection with automatic reset
- 100% traceability
- Compliant with VDA and SAE
Technical Data
Material
FKM & FVMQ (Fuel)
Temperature
Pressure
Nominal Size (VDA)
Nominal Size (SAE)
VDA Versions

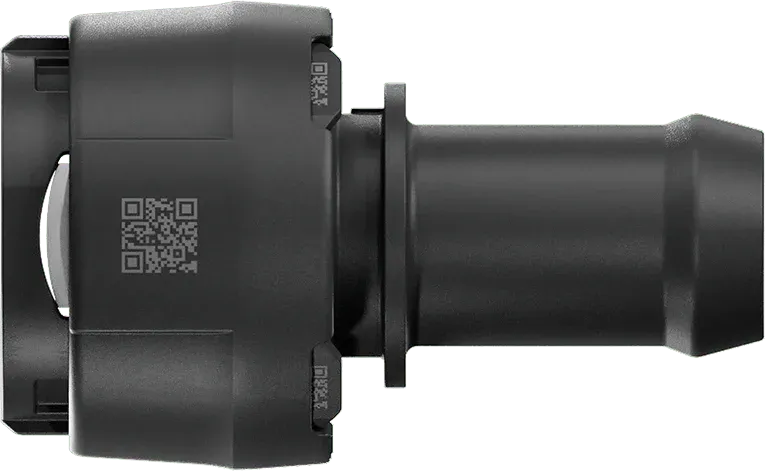

0°

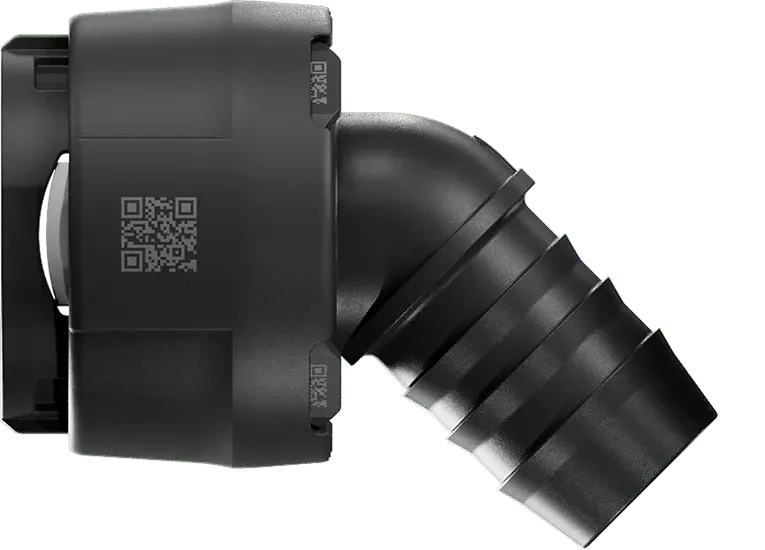

45°

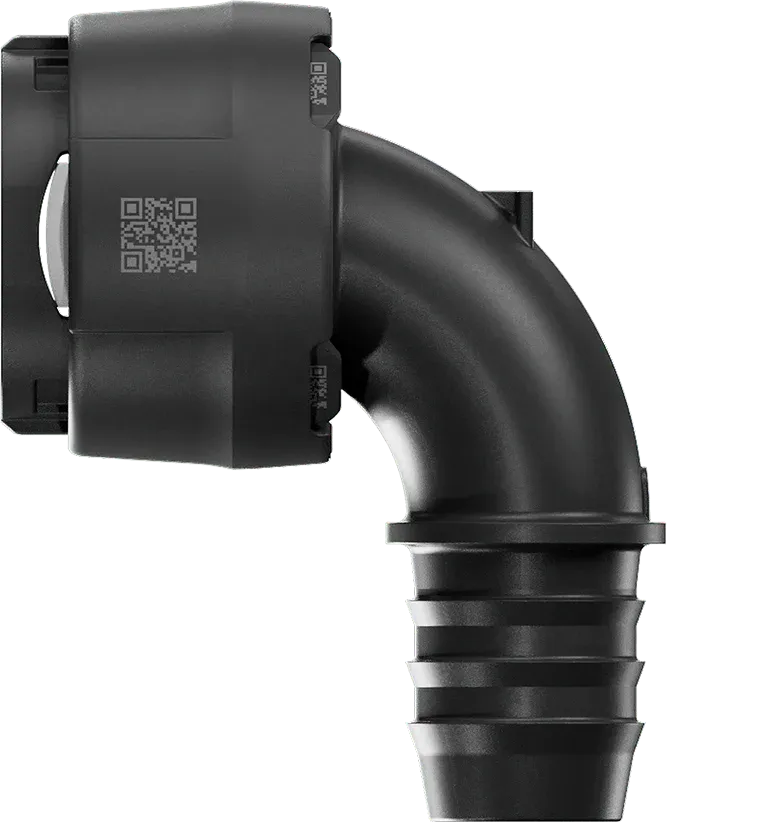

90°
15°, 30°, 60° and 75° on request
SAE VERSIONS

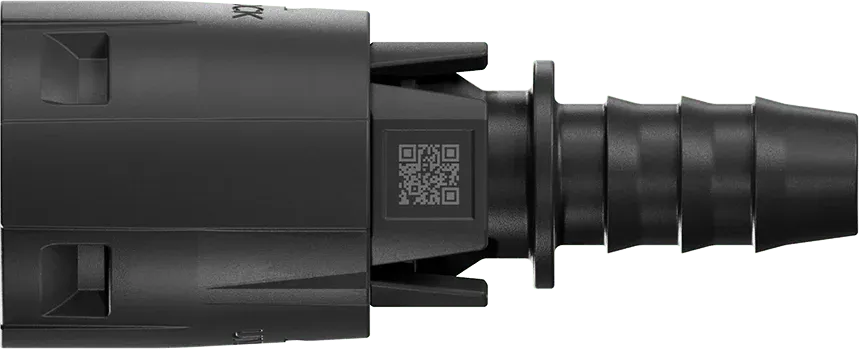

0°

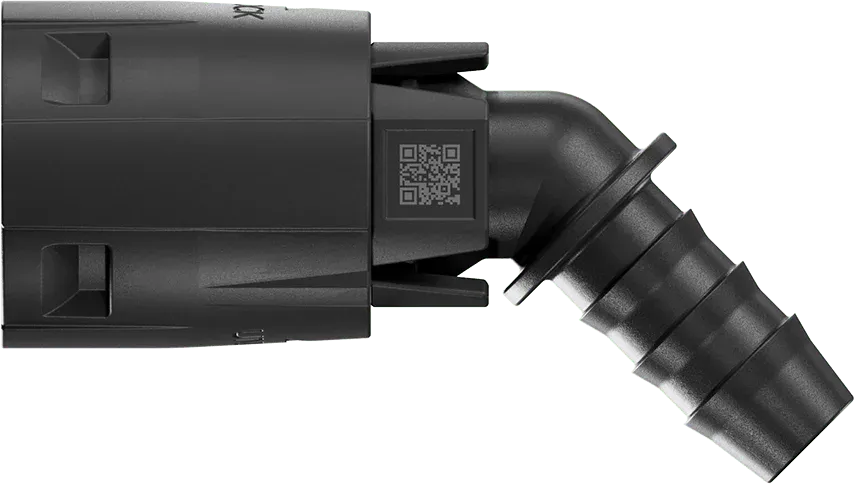

45°

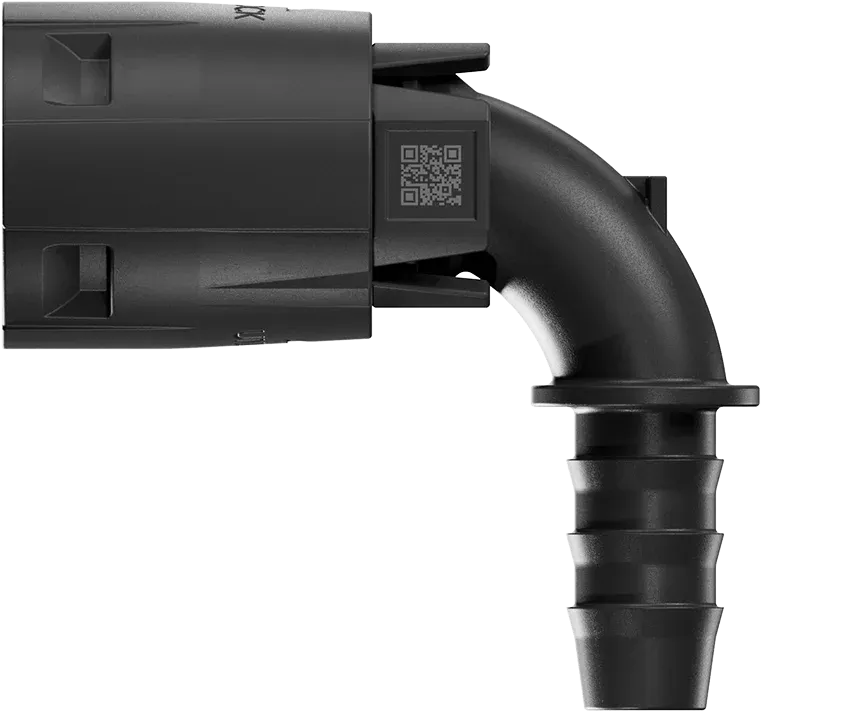

90°
HOSE CONNECTION VERSIONS

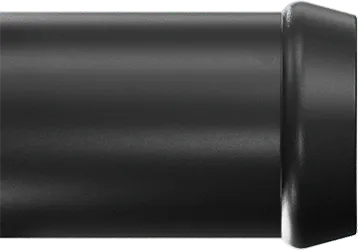

HOSE CONNECTION (smooth)

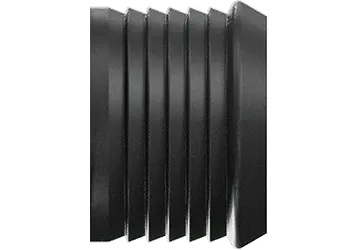

HOSE CONNECTION (ribbed)

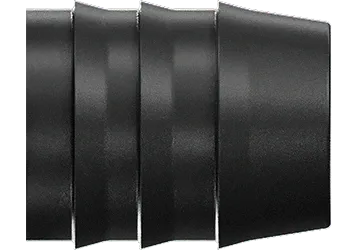

PIPE CONNECTION (Firtree)
Quality and versatility.
Our new product ranges impress with their optimal modularity and quality. With a broad range of different nominal diameters and versions, we’re able to meet just about any customer requirements.
Product compatibility.
One for all.Our innovative modular system enables limitless combinations. The material and design can be precisely tailored to your needs.
Modularity for full flexibility.
Head orientation.The connector can be aligned in eight different orientations at 45 degrees in each case. This comes along with major advantages with regard to assembly, which is also easy in tight conditions.
Modularity for full flexibility.
Intelligent integrationOur products offer more: The modular system design allows for the easy integration of sensors and additional modules. This enables standard components to be quickly and cost-effectively combined with custom add-ons – for tailored solutions to meet specific requirements.
Optimized for flow
Up to 60 percent
less pressure loss in comparison to other VDA connectors.
Perfect solutions for e-mobility.
Cooling plays a crucial role in electric vehicles. HENN offers perfect solutions here:
Our global team of experts develops couplings and connectors together with you to ensure reliable heat management. Our innovative modular system and our customer orientation, coupled with our expertise, are our unique added value.
Revolutionary Material
Reduces Carbon Footprint by 80 %We manufacture the connectors from recycled industrial waste upon customer request, taking a big step towards a more sustainable future. The material offers the same performance as conventional materials, but with a fraction of the ecological impact.
Interested in HENN connectors?
We’re looking forward to receiving your request.
